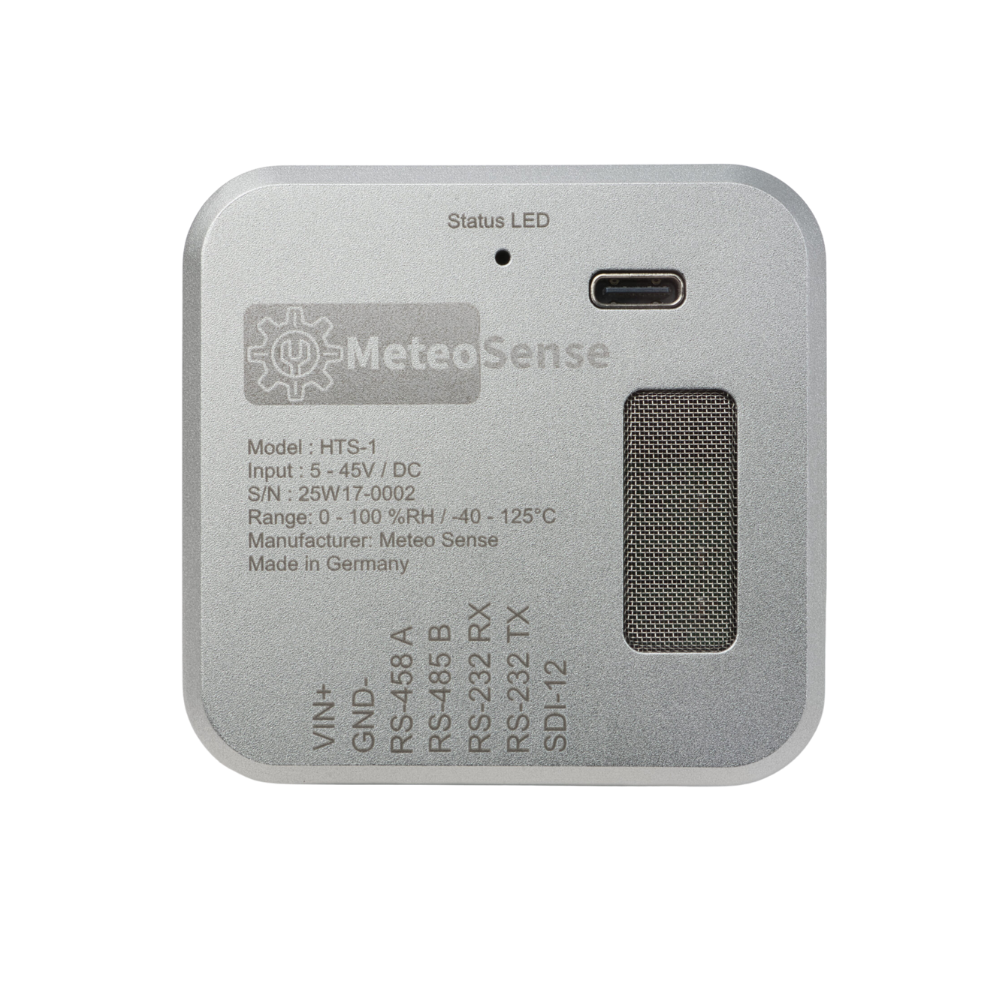

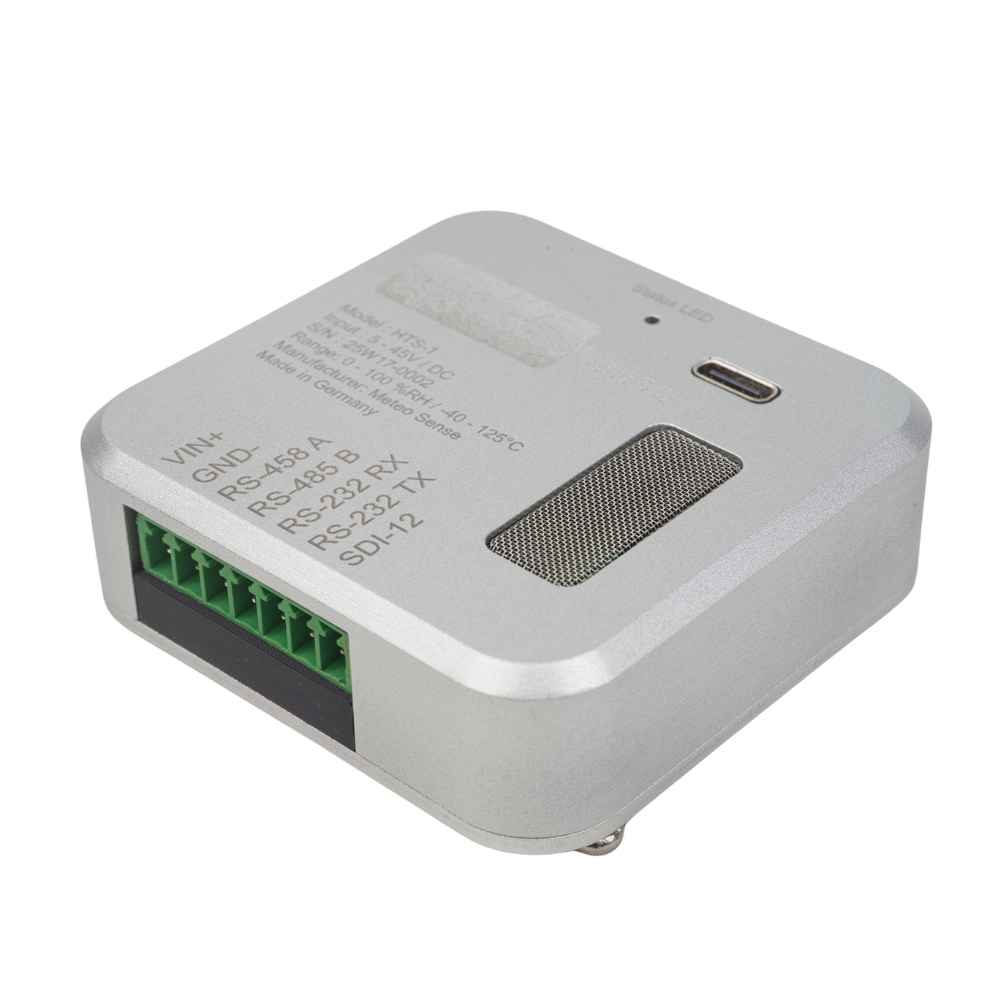

MeteoSense - Temperature and Humidity Sensor HTS-1
• Three fully integrated sensing elements operate in parallel. Their data is internally processed, cross-checked and averaged.
• Temperature:
Range: -40 ... 80 °C
Resolution: 0.01 °C
Accuracy: ±0.1 °C
• Humidity:
Range: 0 ... 100% rH
Resolution: 0.01% rH
Accuracy: ±2% rH
• Interfaces: RS-485, RS-232, SDI-12, USB
• Protocols: Modbus RTU/ASCII, SDI-12, USB-CDC
• Calibrated
• Operating voltage: 5 ... 45 VDC
• Power Consumption at 12 V (normal, always on): 20μA, 3mA
• Dimensions: 64 x 62 mm, 64 x 92 mm (with DIN rail mount)
• Optional as standard version: Without DIN rail mount (On request)
