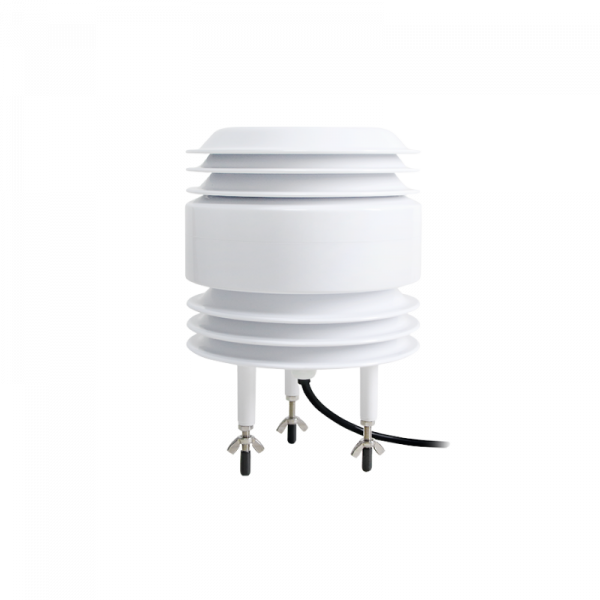

PV-MGA8 Gas Sensor - Type A

PV-MGA8 Gas Sensor - Type A

• Temperatur:
    Range: -30 ... 70 °C
    Resolution: 0.1 °C
    Accuracy: ±0.3 ℃

• Humidity:
    Range: 0 ... 100 %RH
    Resolution: 0.1 %RH
    Accuracy: ±3 %RH

• Illuminance:
    Range: 0 ... 200 KLux
    Resolution: 10 Lux
    Accuracy: ±5 %

• Dew point temperature:
    Range: -100 ... 40 ℃
    Resolution: 0.1 ℃
    Accuracy: ±0.3 ℃

• Air pressure:
    Range: 300 ... 1100 hPa
    Resolution: 0.1 hPa
    Accuracy: ±1 hPa

• CO₂:
    Range: 0 ... 5000 ppm
    Resolution: 1 ppm
    Accuracy: ±1 hPa

• PM1.0/2.5/10:
    Range: 0 ... 1000 μg/m³
    Resolution: 1 μg/m³
    Accuracy: ±10 %FS

• TSP:
    Range: 0 ... 30 mg/m³
    Resolution: 1 μg/m³
    Accuracy: ±15 %FS

• Standard gas: CO, SO₂, O₃, NO₂, H₂S, NH₃, TVOC, CH₂O, CH₄, O₂, NO, Odour

• High-precision gas: CO, SO₂, O₃, NO₂, H₂S, NH₃

• Configurable parameters (optional): T/H/P + CO + PM1.0 + PM2.5 + PM10

• Addable gas types (optional):
     Standard gas sensor: 1 ... 4 (optional)
     High-precision gas sensor: 1 ... 2 (optional)

• Supply 12 ... 24 V DC

• Output: RS485

• Response time: < 1s

• Operating temperature: -20 ... 60℃ @ 15 ... 80 % RH

• Certification: CE-EMC, CE-LVD, RoHS, ISO9001
