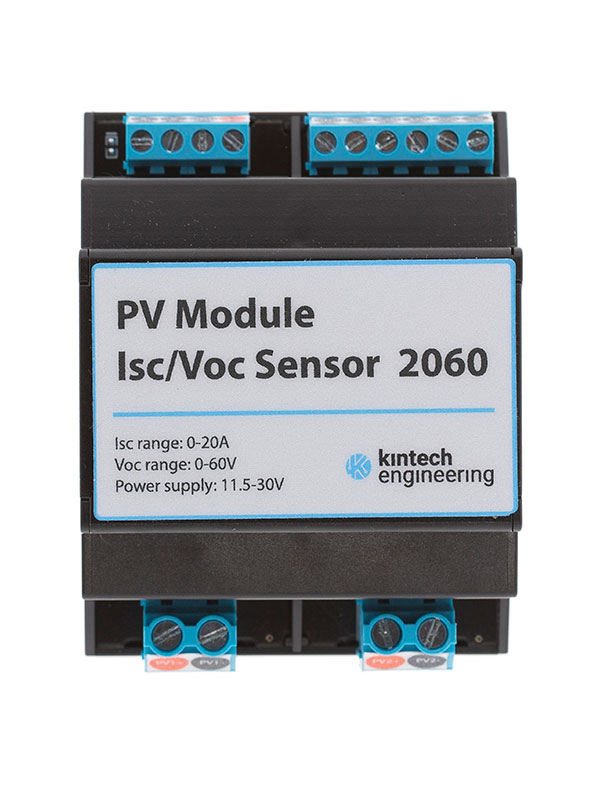

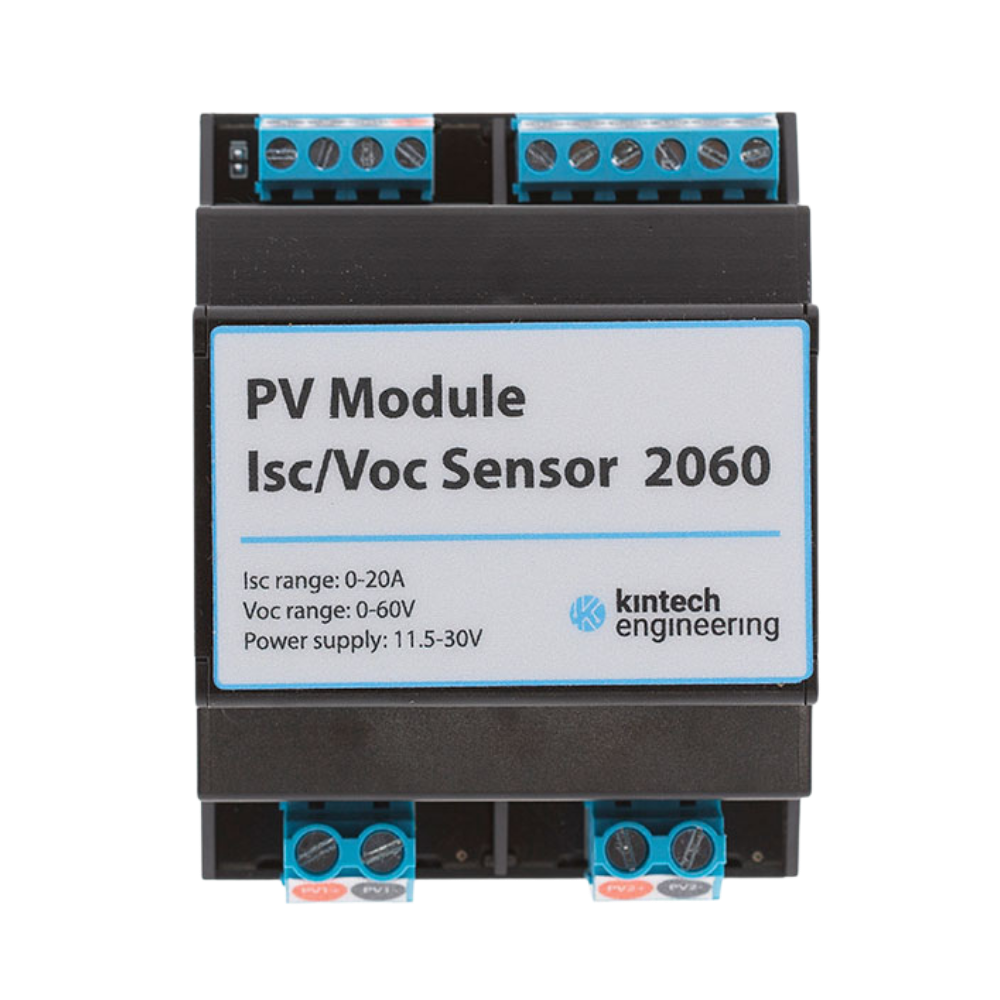

Kintech PV Module Isc/Voc Sensor 2060
The device can measure the Isc and Voc values from up to two solar PV panels simultaneously
|
• Supply voltage:
|
11.5 ... 30 V (DC)
|
|
• Average current consumption:
|
10 mA @ 24 V
|
|
• Peak current consumption:
|
500 mA @ 24 V
|
|
• Operating temperature:
|
-30 ... +70 ºC
|
|
• Storage temperature:
|
-30 ... +85 ºC
|
|
• Dimension:
|
72 mm x 89.7 mm x 62.2 mm
|
|
• IP:
|
IP10
|
|
• Compatibility:
|
Analog output: all Kintech Engineering data loggers
Digital output: Orbit 360 Premium
|
|
• Inputs:
- Isc range
- Isc accuracy
- Voc range
- Voc Accuracy
|
0 ... 20 A, 0 ... 30 A
0.1 %
0 - 60 V
0.1 %
|
|
• Outputs:
- Analog range
- Analog transfer function
- Digital*
- Digital protocol
|
0 ... 5 V
Check “How to configure“ table
RS485
Modbus RTU
|
