• Includes mounting of sensor-specific connectors / plugs / jacks • Sensor-specific wiring scheme included • Line-to-line calibration according to IEC, MEASNET and FGW recommendations • Labelling provided for easy plug&play installation on site
• LiYCY (TP) BK • Manufactured with special PVC-based compound insulation and cores twisted to pairs • Includes mounting of sensor-specific connectors / plugs / jacks • Sensor-specific wiring scheme included • Line-to-line calibration according to IEC, MEASNET and FGW recommendations • Labelling provided for easy plug&play installation on site
• W200P/FC • Potentiometer 0 … 10 kOhm ±15% = 0 … 360 degrees • Measurement range: 1.15°...358.85° • Dead band: 2.3° ±1.5º (continuity; north gap) / 3.5° ±1.5º (variation; dead band) • Accuracy: ± 3º in steady winds > 3.5m/s (±2° obtainable following calibration) • Resolution: better than 0.2° • Survival speed: ≥ 80m/s (160 knots, 180mph) • Temperature range: -40 to +70ºC

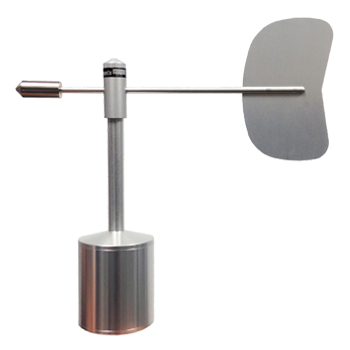

• W200P • Potentiometer 0 … 1 kOhm ±10% = 0 … 360 degrees • Measurement range: 1.15°...358.85° • Dead band: 2.3° ±1.5º (continuity; north gap) / 3.5° ±1.5º (variation; dead band) • Accuracy: ± 3° in steady winds >5m/s (±2° obtainable following calibration) • Resolution: ± 0.2° • Survival speed: 75m/s (150Knots, 170mph) • Temperature range: -50 to +70°C
• W200P/L • Potentiometer 0 … 2 kOhm ±10% = 0 … 360 degrees • Low-torque 2K Ohm potentiometer, more responsive to light winds • Measurement range: 1.15°...358.85° • Dead band: 3° ±2º (continuity; north gap) / 5° ±3º (variation; dead band) • Accuracy: ± 4° in steady winds >3m/s • Resolution: ± 0.25° • Survival speed: 75m/s (150Knots, 170mph) • Temperature range: -30 to +70°C
• Fits to all Vector Instruments sensors (anemometers, wind vanes and several others) that use a type 405 or 405/27P mounting adaptor • Galvanic separation of sensor from boom & met mast structure • Durable POM thermoplastic • UV resistant
Service includes: • Inspection • Inspection report • Subsequent to an inspection, the Client can decide if the sensor shall receive a Certified Maintenance and Refurbishment Service or, if needed, repair.
For Thies and Vector Instruments (Windspeed Ltd.) wind vanes: • Repair (sensor specific) • Maintenance • Authorised refurbishment • Exchange of bearings, O-rings, sealings • Certificate • Authorisation seal • The repair service depends on the individual sensor defects and conditions. A sensor specific offer will be made based upon an inspection report.
{{.}}
{{{.}}}
