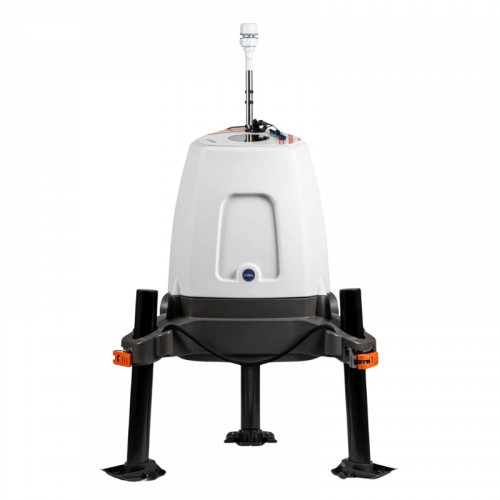

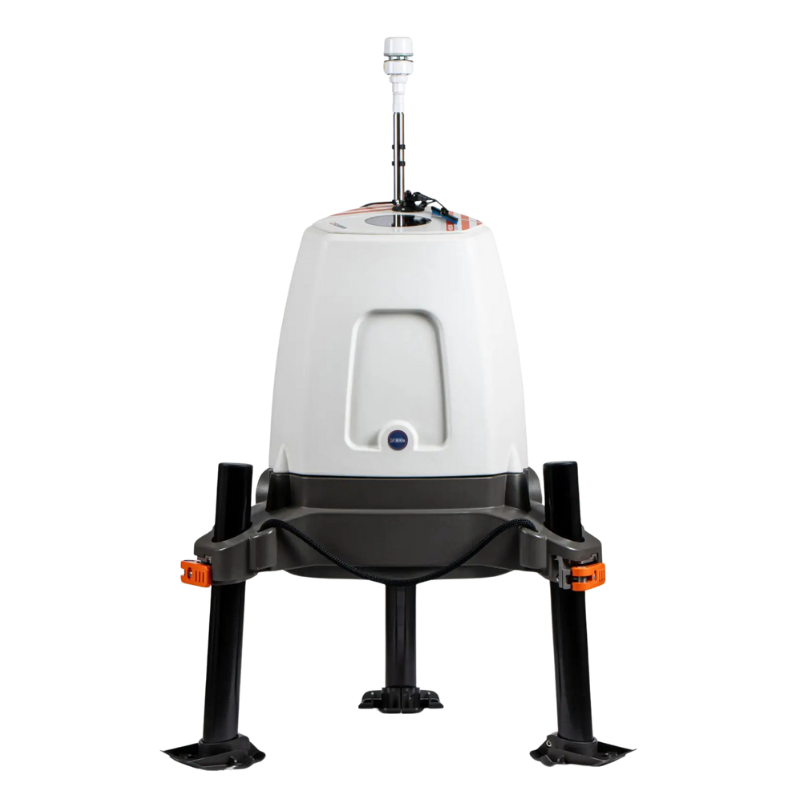

ZX 300e LiDAR (price not valid for sales to the US!)
• IEC classified from 21 to 200 m
• Accuracy class and standard uncertainty of 0% at all heights
• Measurement range: Accuracy and availability proven up to 300m
• New Continuous Wave algorithms and hardware
• Cup-equivalent turbulence intensity and wind direction sensing
• Low power consumption of only 44 W even at -25°C
• Accessed through a secure, web-based interface for fleet use
• Wind speed range: < 1m/s to 80 m/s
• Wind direction accuracy: <0.5°
• 50 Hz sampling rate - 50 measurement points every second, pulsed laser technology
• ZX Complex Flow Solver for highspeed CFD modelling to convert Lidar data in to equivalent met mast data
• Data access via Wi-Fi, Ethernet and over mobile/cellular network
• Ease of deployment: unit weight below 55kg
• Operational environment: −40°C...+50°C
• IP67
• Size: 900x900x1001mm
• 5 years warranty included
• 5 years maintenance interval
Datenblatt
