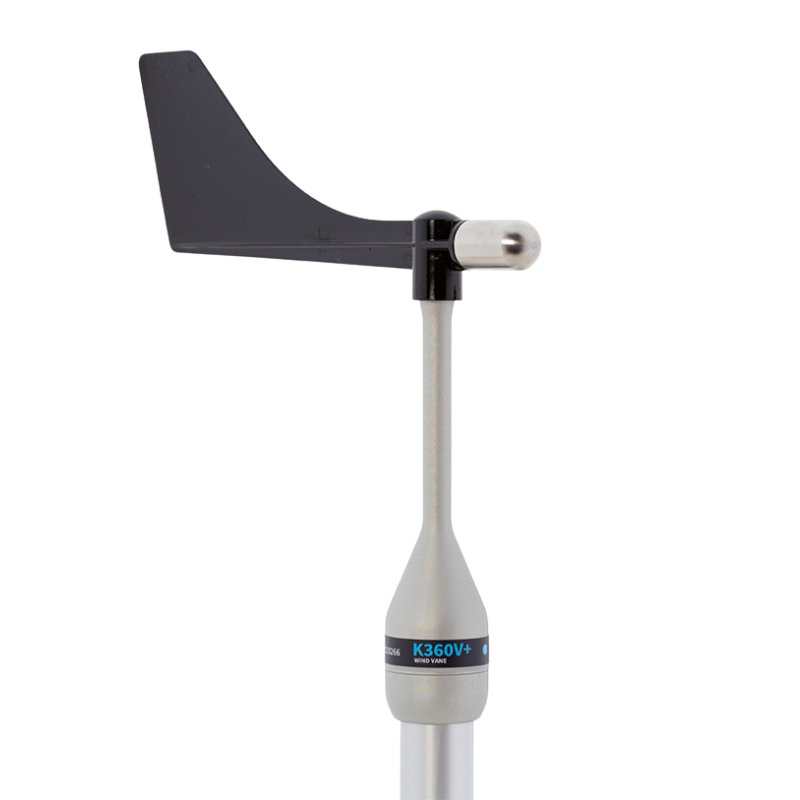

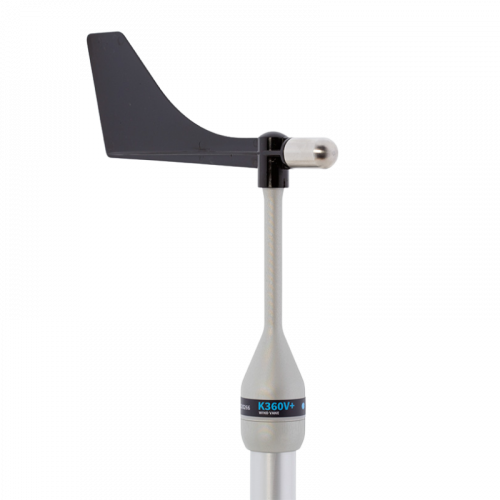

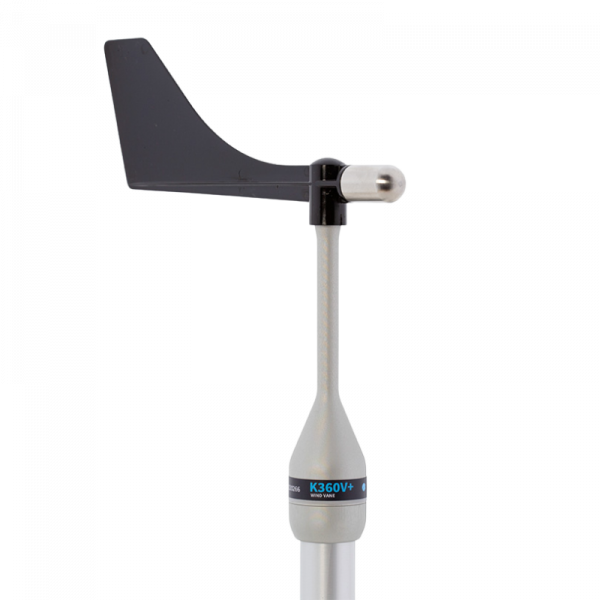

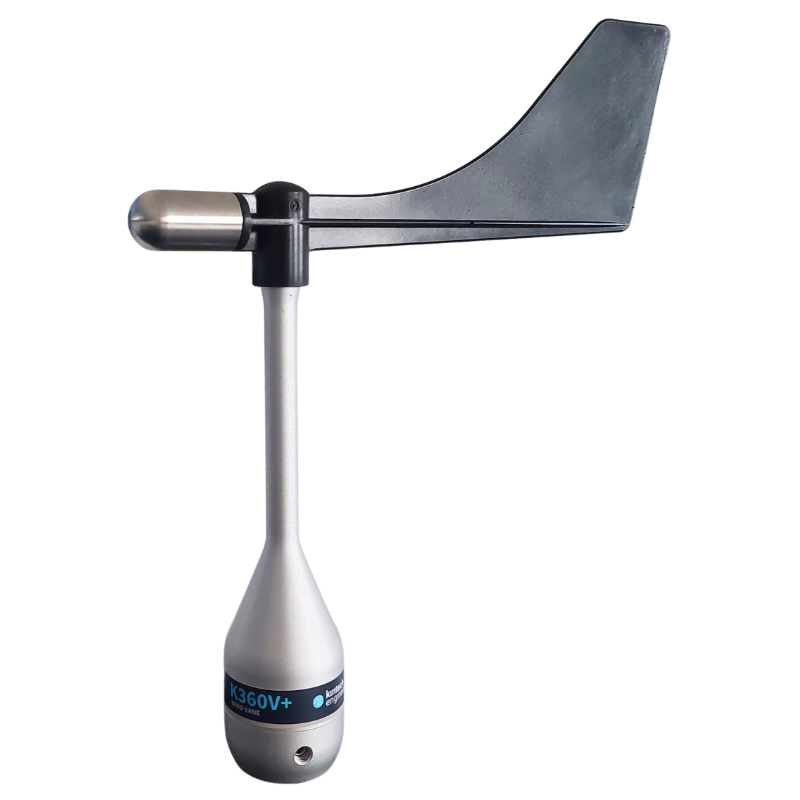

K360V+ Sensor
High precision wind vane with continuous 360º rotation and no dead band and a resolution of just 0.35º. Designed for use in wind resource assessment, solar resource assessment as well as meteorology and environmental monitoring and features a very low starting threshold of less than 0.4 m/s, an accuracy of +/- 1.4º and is built from high strength anodized aluminium and polycarbonate for harsh climatic conditions. The wind vane is designed for mounting on a 25 mm (or 1”) diameter tube.
The sensor complies with the specifications of the World Meteorological Organization (WMO-No.8).
- Sensor type: Tunnel Magneto Resistance
- Output signal: Analog
- Output range: 0…5V (0…360º)
- Supply voltage: 6…22V
- Power consumption: <0.75 mA
- Dead band: None
- Resolution: 0.35º
- Accuracy: +/-1.4º
- Miswire protection: Temperature fuse
