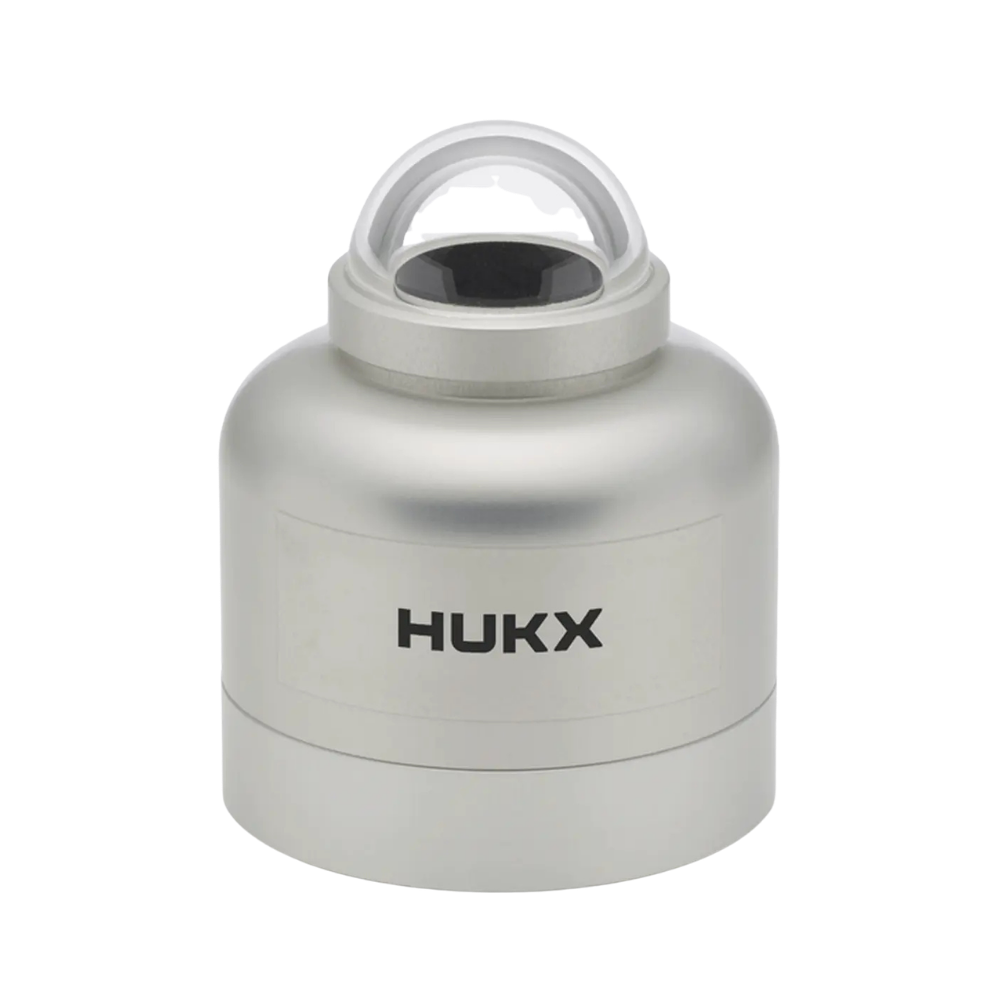

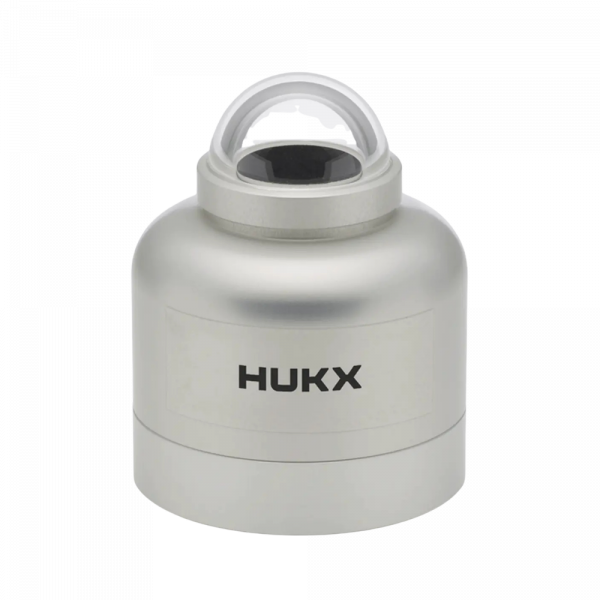

Hukseflux SR05-A1 Pyranometer (calibrated)
• ISO 9060: Class C
• Measurement range: 0 to 2000 W/m²
• Spectral range: 285 to 3000 nm
• Incl. calibration sheet with each sensor; traceable to World Radiometric Reference (WRR)
• Zero offset (response to 200 W/m² net thermal radiation): < ± 15 W/m²
• Response time: 18 s
• Non-linearity (100 to 1000 W/m2): < ± 1 %
• Tilt response: < ± 2 % (0 to 90 ° at 1000 W/m²
• Non-stability: < ± 1 % change per year
• Directional response: < ± 25 W/m²
• Temperature response: < ± 3 % (-10 to +40 °C)
• IP 67
• Communication: Analog mV
