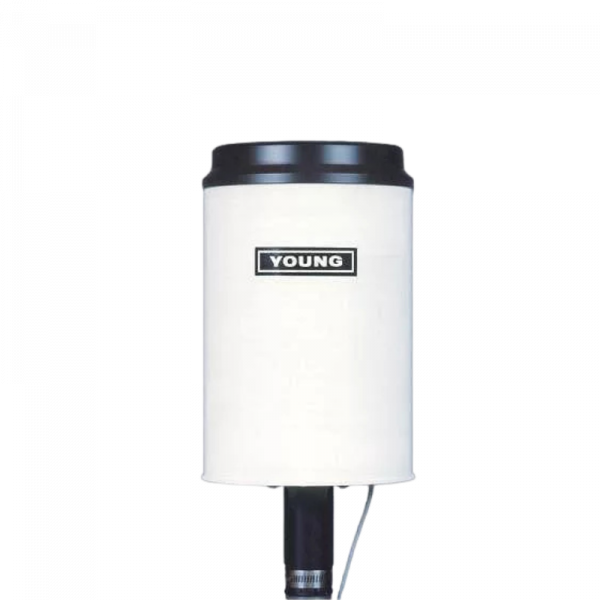

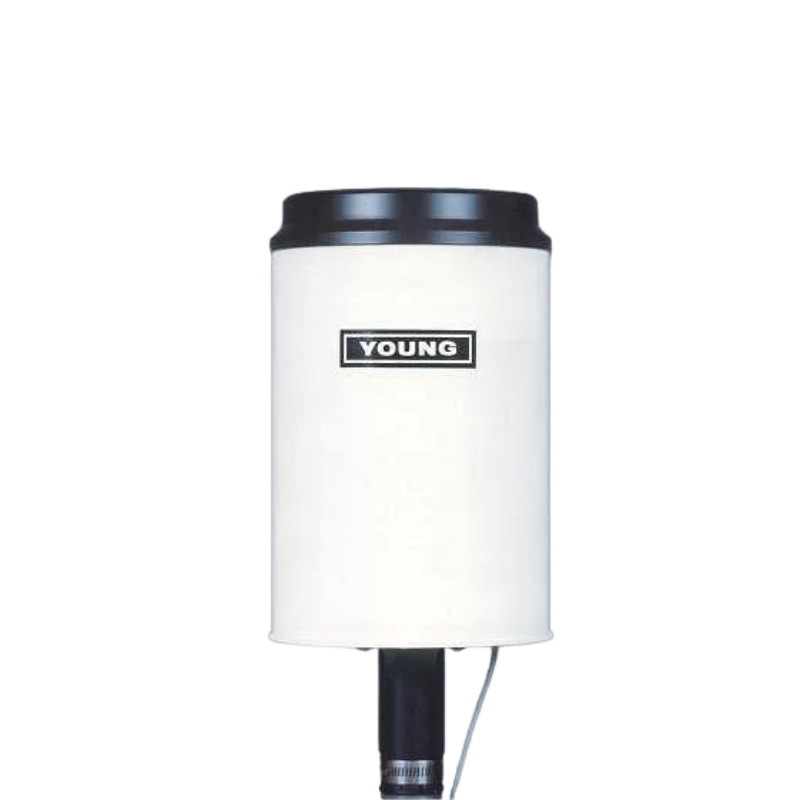

Rain Gauge Sensor (Pluviometer) Young 52202 / 52202H (heated) - Tipping Bucket

Rain Gauge Sensor (Pluviometer) Young 52202 / 52202H (heated) - Tipping Bucket

• Operating temperature: -20°C ... +50°C (heated)

• 200 cm2

• Accuracy: 2 % ≤ 25 mm/hr, 3 % ≤ 50 mm/hr

• Scale: 0.1 mm/tip (optional: 0.2 mm per tip))

• Meets the specifications of the World Meteorological Organization (WMO)

• Analog output: reed switch, 24 VAC/DC 500 mA

• 18 Watts for heater only

• 120V/60HZ or 220V/50-60HZ (H model)

• Durable and corrosion resistant

• Factory calibrated

Datenblatt
