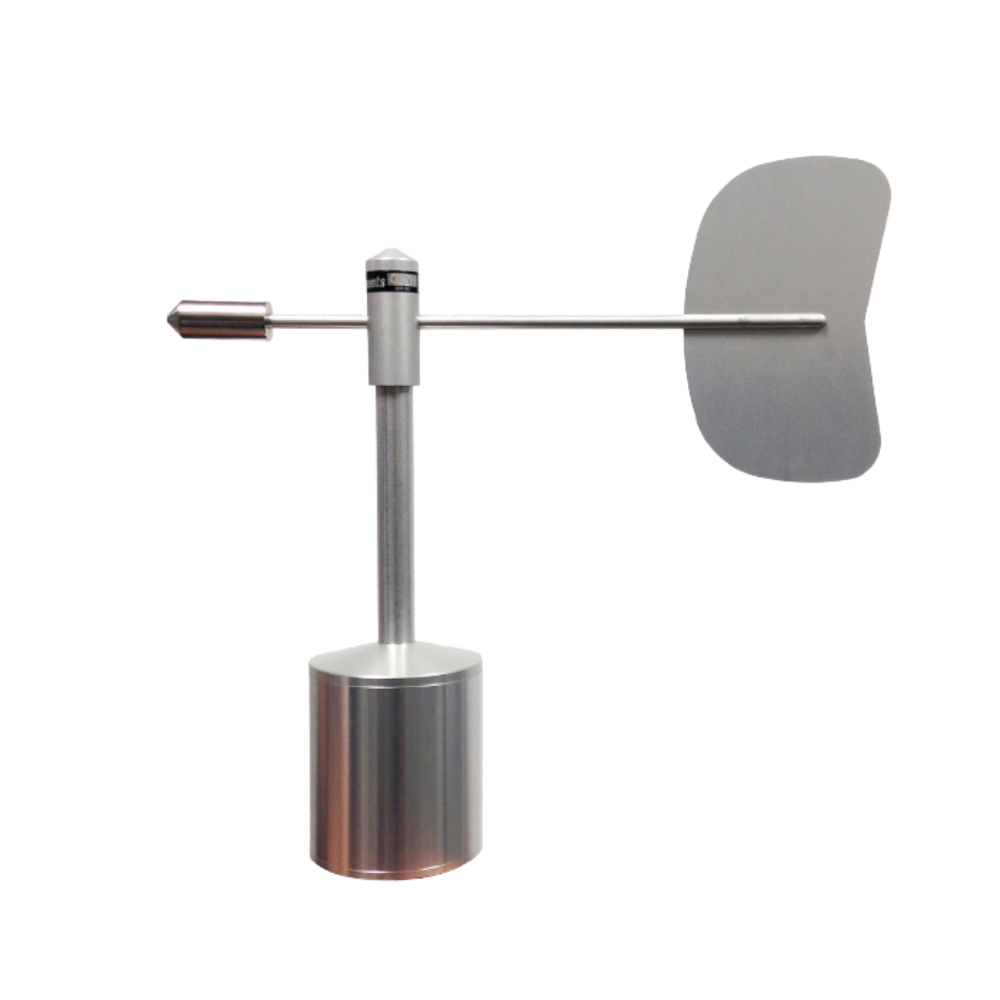

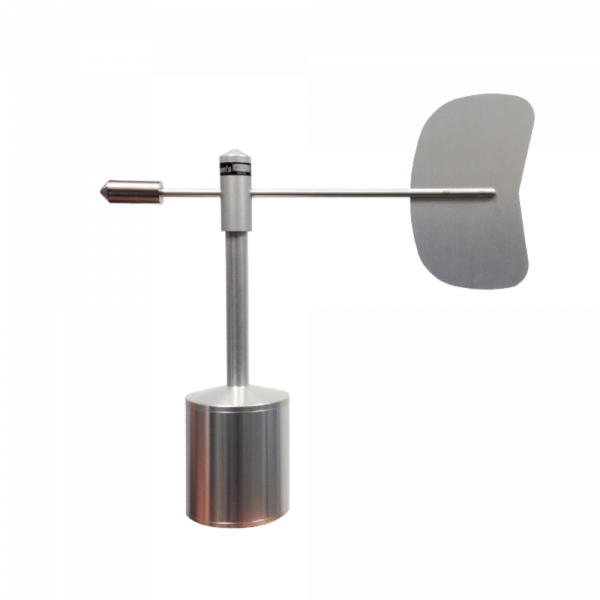

Vector Instruments W200P/L

• Potentiometer 0 … 2 kOhm ±10% = 0 … 360 degrees

• Low-torque 2K Ohm potentiometer, more responsive to light winds

• Threshold: 0.6m/s (1.2Knot, 1.4mph)

• Measurement range: 1.15°...358.85°

• Dead band: 3° ±2º (continuity; north gap) / 5° ±3º (variation; dead band)

• Accuracy: ± 4° in steady winds >3m/s

• Linearity: ± 0.5%

• Resolution: ± 0.25°

• Survival speed: 75m/s (150Knots, 170mph)

• Supply voltage: 1 to 5V recommended (20V absolute max.)

• Temperature range: -30 to +70°C


Datenblatt
