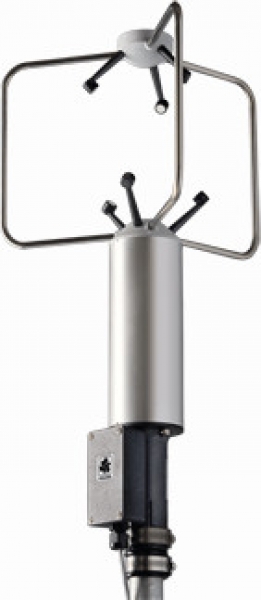

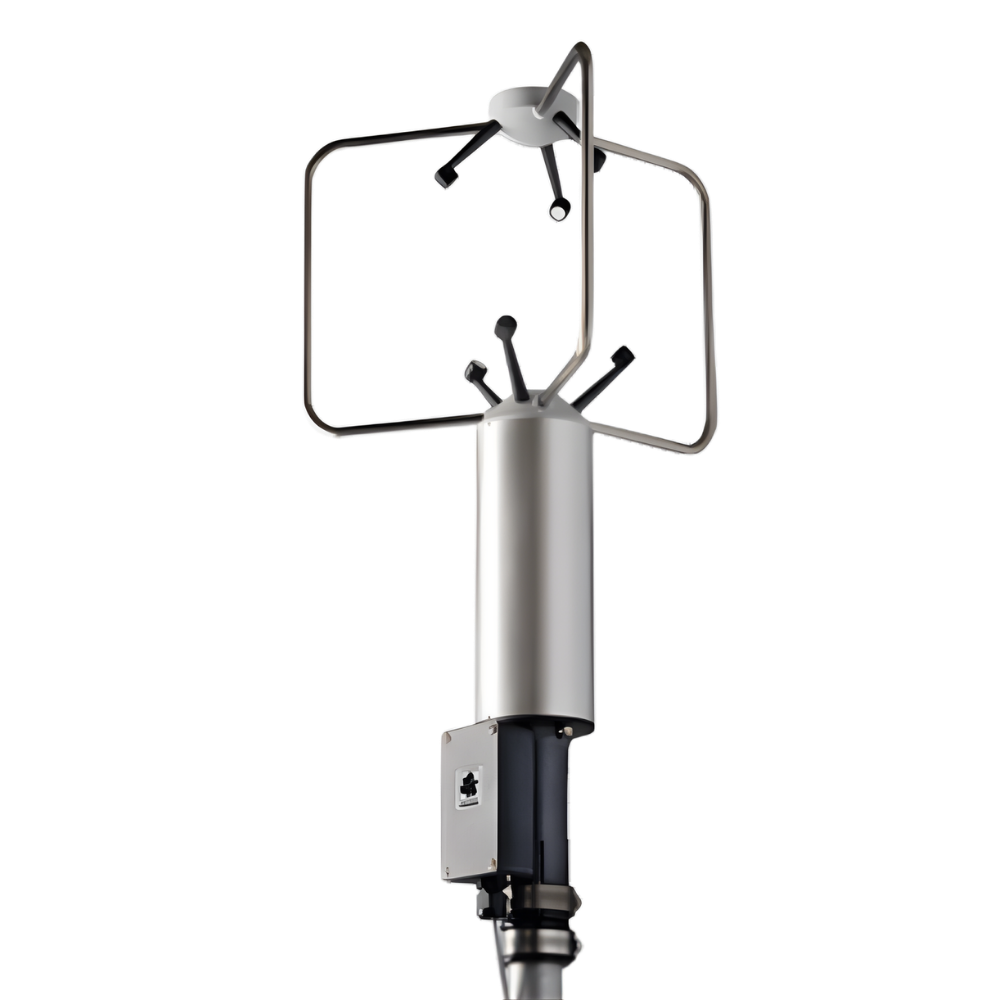

R. M. Young Ultrasonic Anemometer
• 3-axis, no-moving parts wind sensor
• Durable corrosion-resistant construction with 3-opposing pairs of ultrasonic transducers supported by stainless steel members
• Wind measurement range: 0.01 ... 40 m/s
• Wind direction measurement range: azimuth: 0 ... 360°; elevation: -60° ... +60°
• Speed of sound: 300 to 360 m/s
• Sonic tempearture: - 50°C ... +50°C
• Accuracy (wind speed): 30m/s: ± 1% ± 0.05 m/s, 40 m/s: ± 3%
• Accuracy (wind direction): 30m/s: ± 2°, 40 m/s: ± 5°
• Accuracy (speed of sound): ± 0.1% ± 0.05 m/s (30 m/s)
• Accuracy sonic temperature: ± 2° (30 m/s)
• Resolution (wind speed): 0.01 m/s
• Resolution (wind direction): 0.1°
• Resolution (speed of sound): 0.01 m/s
• Resolution (virtual temperature): 0.01 m/s
• Serial output: User Programmable ASCII, RS-232 or RS-4, 1200 to 38400 br, 4 Hz ... 32 Hz (user-selected)
• Analog Voltage Output: 4 voltage outputs, 0 to 5000 mV
• Operating temperature range: -50°C to 50°C
• Install on standard 1 inch pipe
• Power Requirement: 12 to 24 VDC, 110 mA
• Wiring connections are housed in a convenient weatherproof junction box
