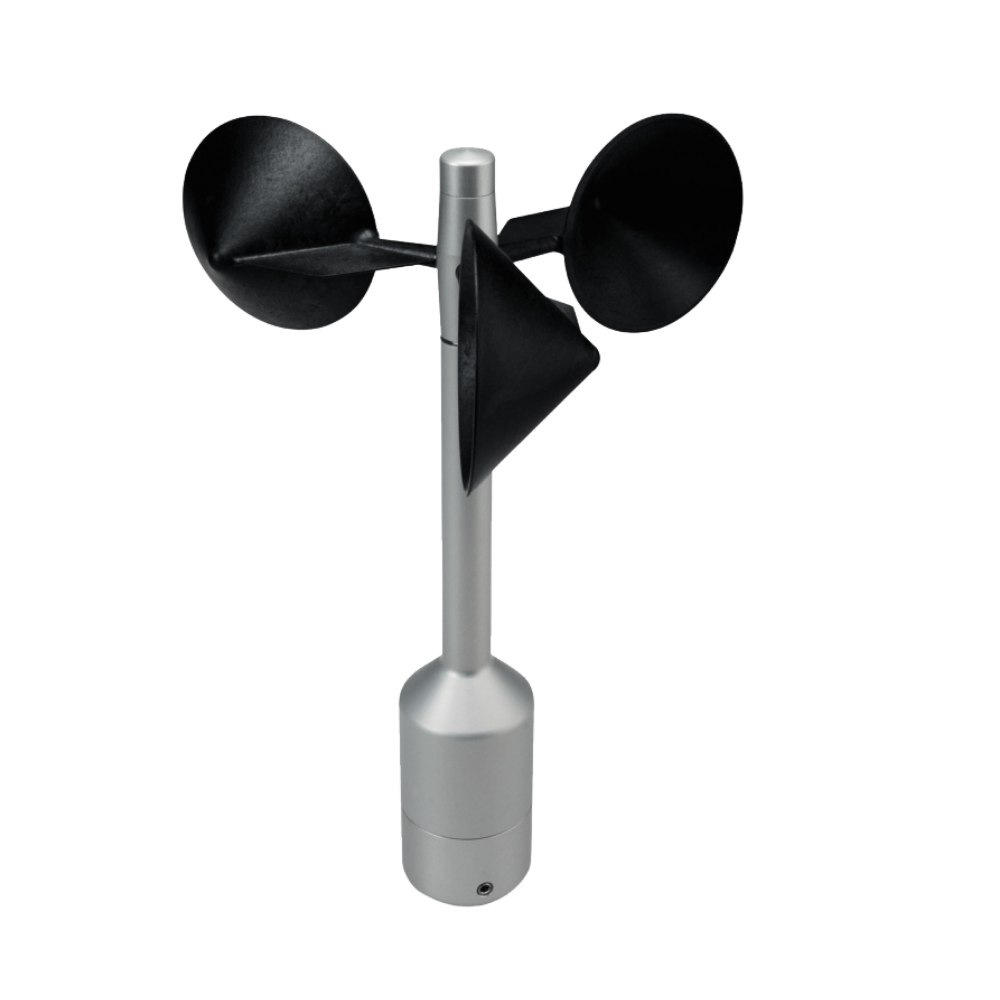

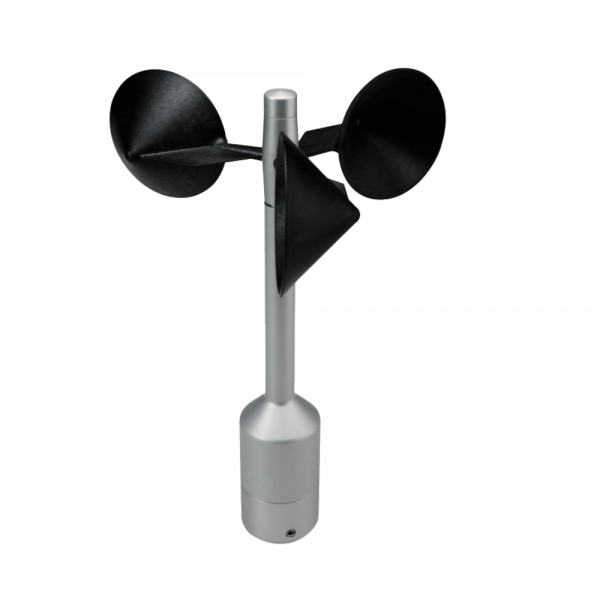

Thies First Class Advanced Anemometer (MEASNET calibrated) - unheated

Thies First Class Advanced Anemometer: 4.3351.10.000

• Class A compliance in accordance to IEC 61400-12-1 and 61400-12-1 Ed.2

• Worldwide the only Class S 0.5 anemometer according IEC 61400-50-1 (latest version), ISO 17713-1, MEASNET

• Calibrated according to MEASNET and IEC 61400-50-1 (latest version) (ilac-MRA)

• Frequency output (1082 Hz at 50 m/s)

• Supply 3.3 ... 42 V DC

• Permissible Ambient conditions: -50 °C … 80 °C

• W/o heating

• Measurement Range: 0.3...75 m/s

• Accuracy: 1% of value or <0.2 m/s (0.3...50m/s)

• Survival Wind Speed 80 m/s (≥ 30 min)

• Linearity: r>0.99999 (4...20 m/s)

• IP 55

• 5 years warranty

Datasheet

Hint: please do not forget to order a sensor cable (by default this comes incl. connector mounting) at the length needed: cable w/ connector
