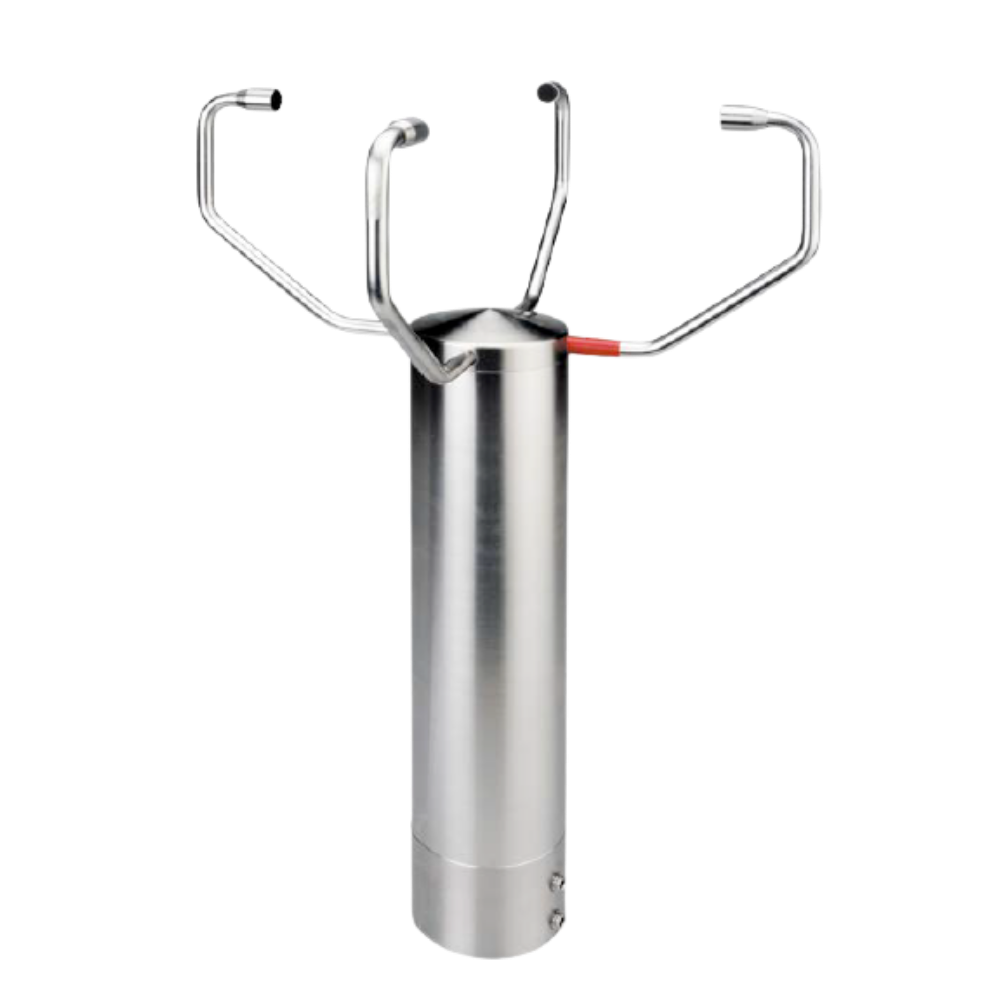

Ultrasonic Anemometer Thies - 2D
• Measurement variables possible: horizontal components of wind velocity and wind direction as well as the virtual temperature in 2 dimensions
• PTC Heating Stainless-steel caps
• Wind measurement range: [0.01 ... 75 m/s]
• Wind direction measurement range: 0 ... 360° (0...540°, 0...720° analogue adjustable)
• Virtual temperature measurement range: - 50°C ... +70°C
• Survival wind speed: min. 80 m/s for min. 30 minutes
• Accuracy in rms, mean over 360° (wind speed): ≤ 5m/s: ± 0.1 m/s, > 5 m/s: ± 2%
• Accuracy (wind direction): ± 1.0°
• Accuracy virtual temperature): ± 5K to 35 m/s
• Resolution (wind speed): 0.1 m/s (except telegrams 6 & 10), 0.01 m/s in user-defined telegram 6
• Resolution (wind direction): 1° (except telegrams 6 & 10), < 1° in user-defined telegram 6
• Resolution (virtual temperature): 0.1 K (except telegrams 6 and 10)
• Sample rate: 0.1 Hz ... 100 Hz
• Half Duplex Configuration with Baud rate 38400/N81
• Operating temperature range: -30°C to 80°C (unheated); -50°C to 80°C (heated)
• Thread diameter for mounting: 11/2" (~48mm) (adapter 1" to 11/2" optional)
• Extreme high precision
• Maintenance free
• Includes warranty maintaining OEM protection box
• IP 67
