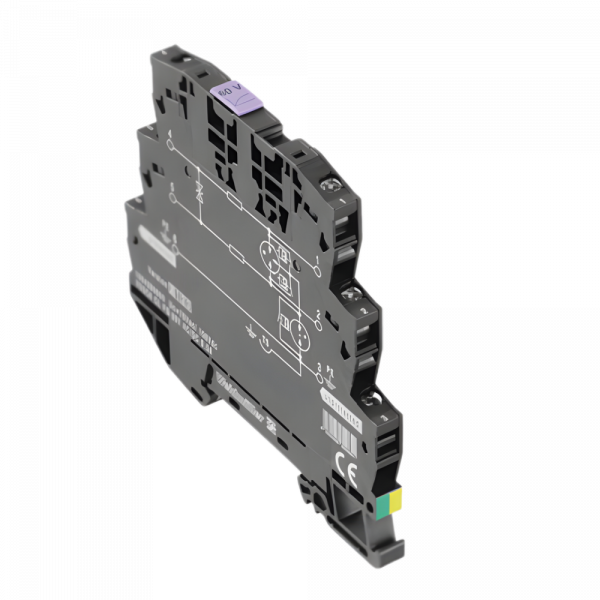

Surge Protection Kit "Premium" for Measurement System Channels
• Surge protection (over-voltage and -currency) module for analogue signals
• Protection possible for each single input channel
• Rated voltage (DC) 34 V
• Rated current 500 mA
• Max. continuous voltage, Uc (DC) 42 V
• Discharge current In (8/20 μs) wire-PE 2.5 kA
• Fuse, max. 0.5 A
• Discharge current Imax (8/20 μs) wire-PE 10 kA Datenblatt
{{.}}
{{{.}}}
